Installing the K&A Software on a New Computer

Setting up a new computer to control your K&A synthesizer? This guide walks you through the full installation of the K&A NextGen software — including network setup, software installation, and database configuration.

🧰 Tools & Requirements

  • Windows PC with admin access

  • Ethernet cable (for direct connection to the instrument)

  • KA_Labs installer (e.g., KA_Labs0075.exe)

  • Latest version of KA_Labs.exe (e.g., KA_Labs0090.exe)

  • KA_Factory_Settings_Backup.kbf file

  • Internet access (optional but helpful)

⚠️CAUTION

We recommend creating a backup of your current settings if you're moving from one computer to another.   Here is an article on how to perform a backup or restore: How to Perform a Backup or Restore on the Synthesizer Software



🛠️ Step-by-Step Installation Instructions

1. Set Up Network Communication

If you are installing this software on a computer for simulation reasons and it will not be connected to an instrument this step can be skipped and you can proceed to 2. Install the Software.



To enable communication between the PC and synthesizer:

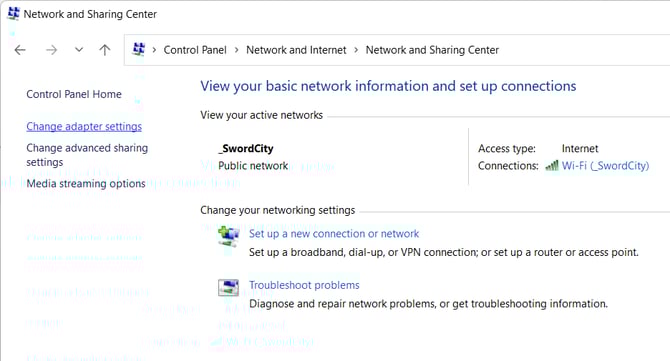

  1. Open Control Panel > Network and Sharing Center

  2. Click Change adapter settings

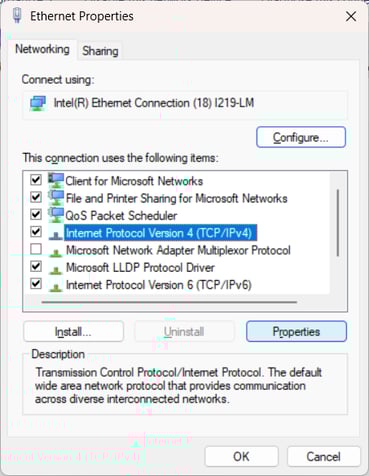

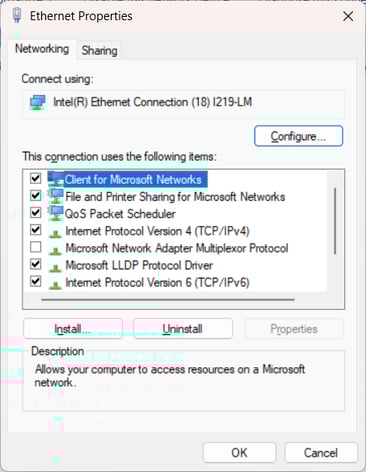

  3. Right-click your Ethernet adapter > Properties

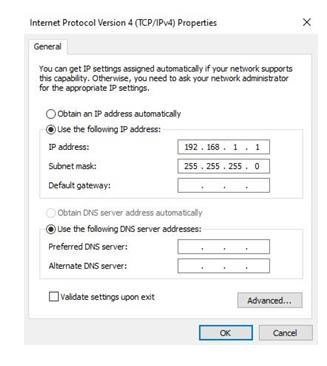

  4. Select Internet Protocol Version 4 (TCP/IPv4) > Properties

  5. Enter the following:

    • IP Address: 192.168.1.1

    • Subnet Mask: 255.255.255.0

    • Leave all other fields blank

  6. Click OK

📘 For more detail: How to Set up Network Communication

2. Install the Software

  1. Make sure the synthesizer is powered on and connected via Ethernet

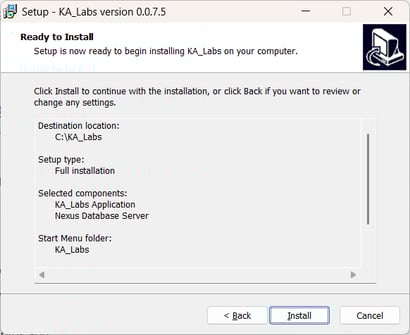

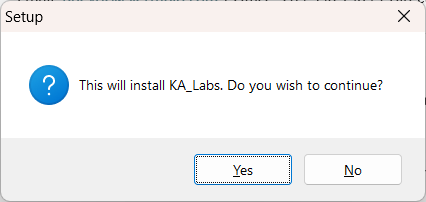

  2. Run the KA_Labs0075.exe ( or latest )installer

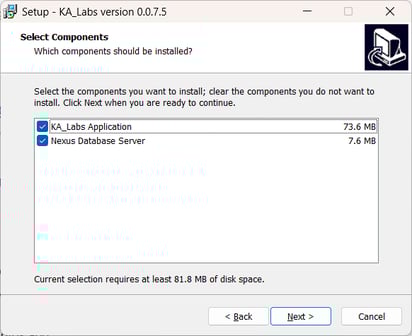

  3. Proceed through the install wizard

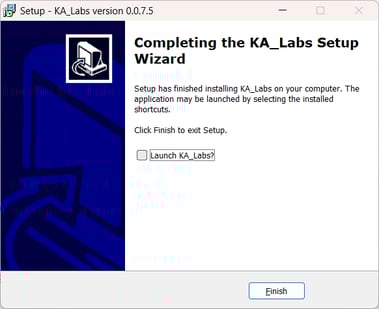

  4. Uncheck the box to launch KA Labs after installation

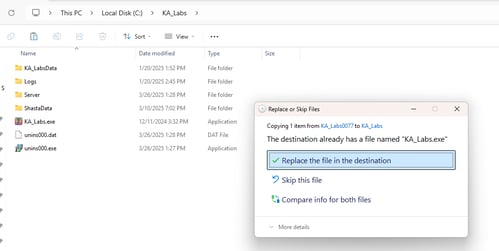

  5. Navigate to C:\KA_Labs\

  6. Replace the installed KA_Labs.exe with the latest version (e.g., KA_Labs0090.exe)

3. Configure the Database

  1. Launch the updated KA_Labs software

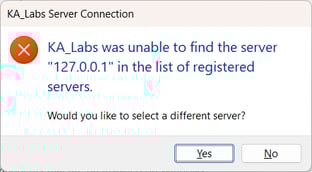

  2. You’ll see a prompt to select a different server

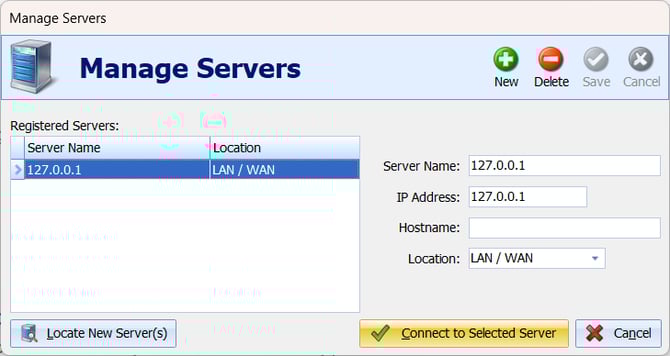

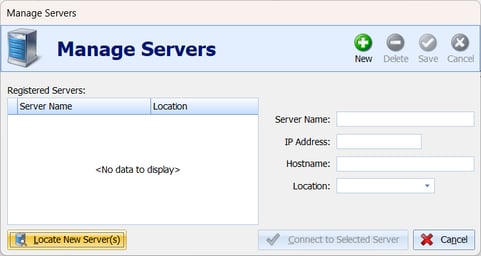

  3. Click Locate New Server(s)

  4. Click the green plus icon to add a new server

  5. Enter the following:

    • Server Name: 127.0.0.1

    • IP Address: 127.0.0.1

    • Hostname: Leave blank

    • Location: Select LAN / WAN

  6. Click Connect to Selected Server

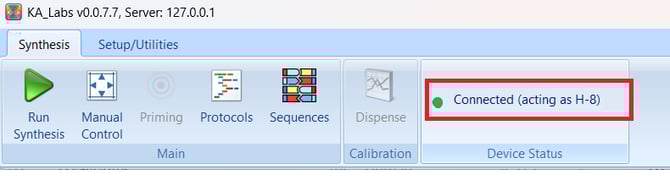

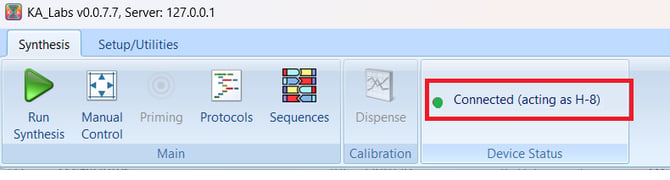

  7. A green light in the control panel confirms successful connection

4. Restore Factory Settings

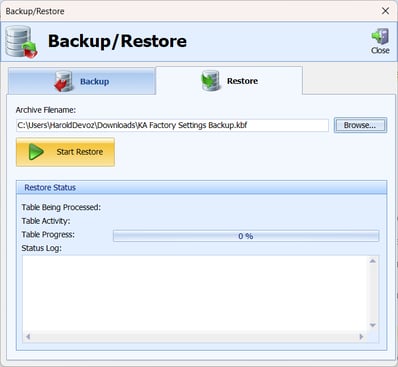

  1. In the software, go to Setup/Utilities > Backup/Restore

  2. Click Restore

  3. Browse for and select KA_Factory_Settings_Backup.kbf

  4. Complete the restore process

✅ The software is now ready to use.

🧯 Server Connection Troubleshooting

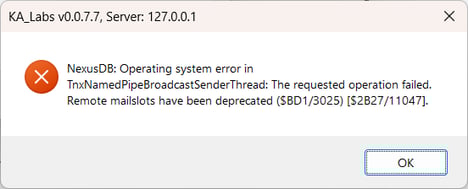

If the software can’t connect to the server:

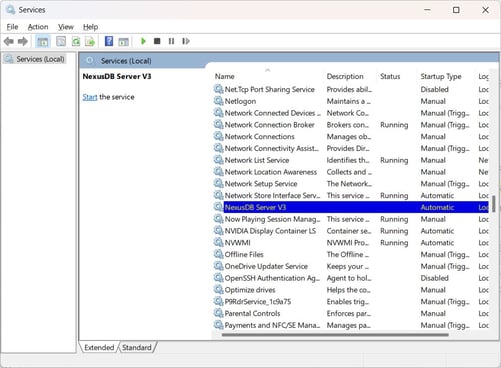

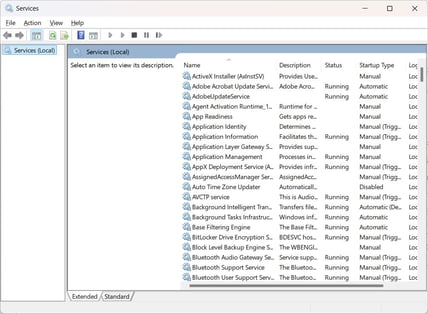

  1. Press Win + R, type services.msc, and press Enter

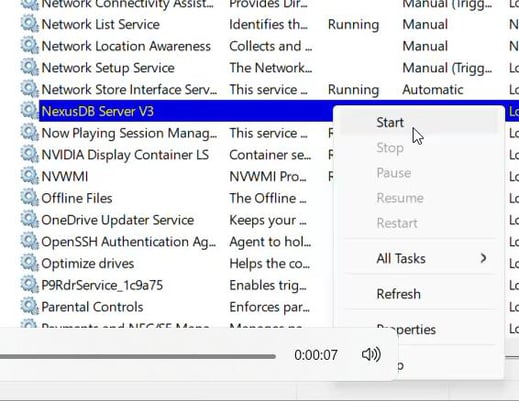

  2. Locate NexusDB Server V3

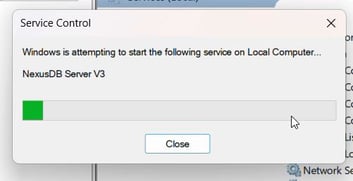

  3. If not running, right-click > Start


  4. Attempt to run K&A Software again

Still not working?

  1. Stop the NexusDB service by following the steps above

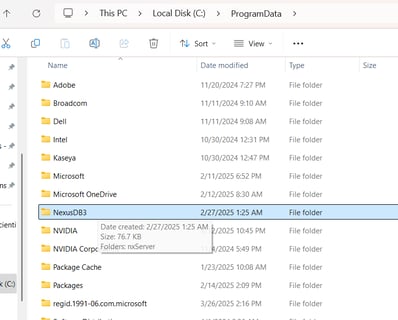

  2. Navigate to C:\ProgramData (you may need to show hidden files)

  3. Delete the NexusDB3 folder

  4. Restart the NexusDB Server and try again
